          FASTAR高頻位移傳感器

          2019-05-07 1392

          規格書下載:點擊下載

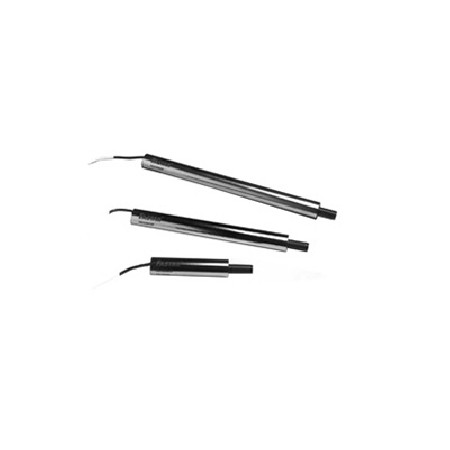

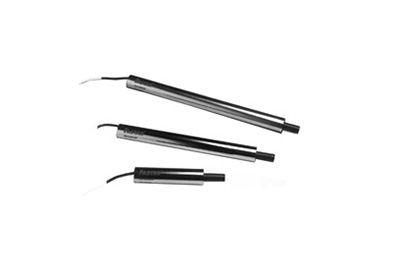

          產品詳情:FASTAR高頻位移傳感器

                  FASTAR is a fast response, shock resistant,non-contact displacement transducer designed to measure linear displacement(position).A precision variable inductor with a stroke to body length ratio of almost 1:1, FASTAR has a body length approximately half as long as typical LVDTs. Used with a Sentech patented signal processor, it allows high speed displacement measuring with less error than other non-contact devices, with excellent immunity to EMI.
                  FASTAR consists of a movable core inside a coil-wound tube. As the core moves in or out, coil inductance changes. The processor generates a DC voltage proportional to the change in inductance.

                  號:FS380,FS1000FS2000,FS3000FS4000,FS6000FS12000
                  程:0.76, 2, 4, 6, 8,10,1218,24(inches)01951101152203254305457609mm
              度:± 0.15 %± 0.10 %可選)
              性:0.003 %
          響應頻率:15000Hz
          響應時間:35μS
          工作溫度:-50125 ,補償溫度-580
                  點:快速響應,反應時間35μS,抗沖擊、振動,動態溫度補償,具有抗強EMI(電磁干擾)
          典型應用:氣缸反饋,材料處理系統,軋輥間隙,閥門定位,機器人運動控制
